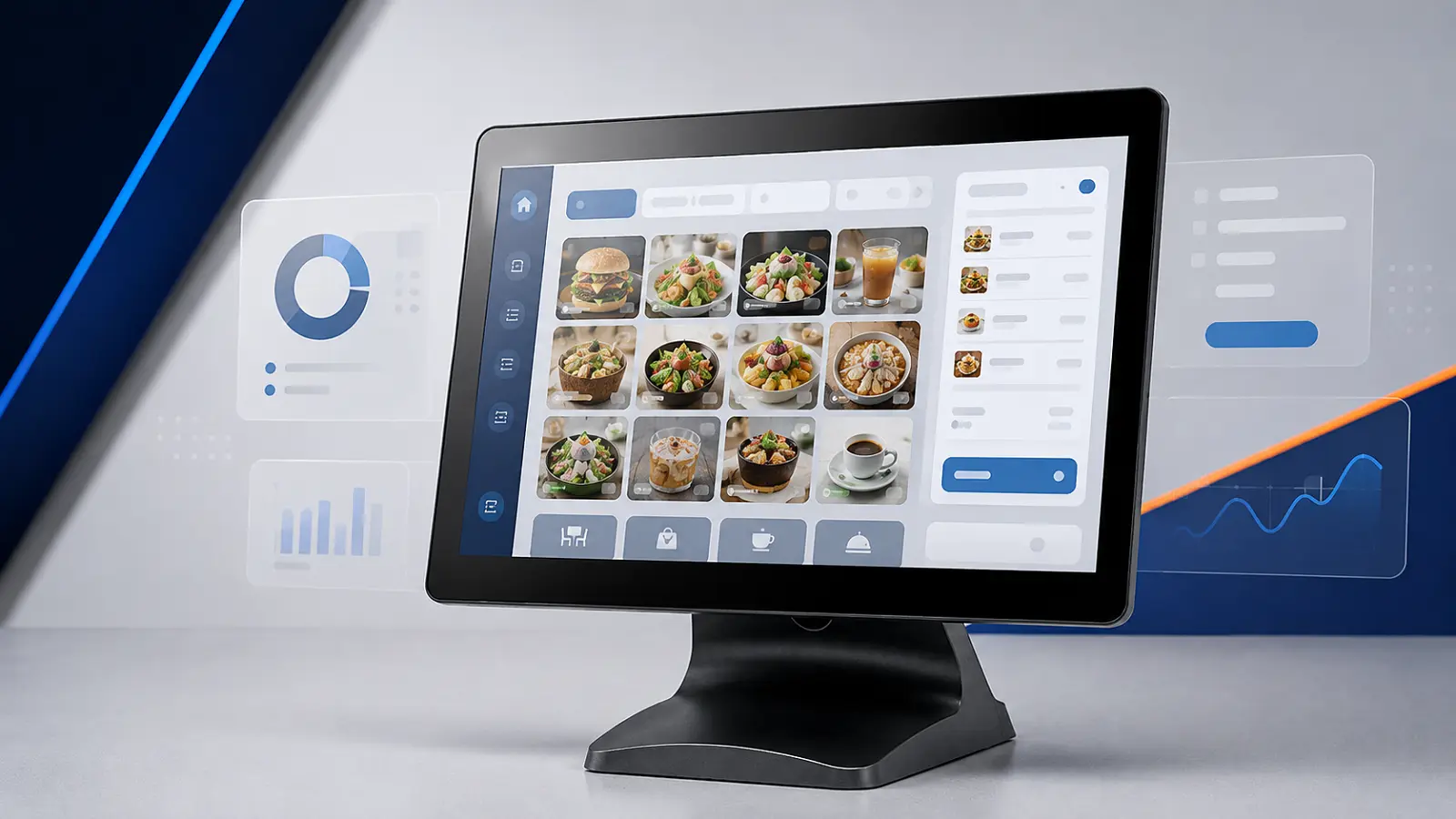

15.6-inch Full HD Display
The 15.6-inch 1920 × 1080 panel provides a clear widescreen workspace for ordering, checkout, product information, and customer-facing applications.
OD1216

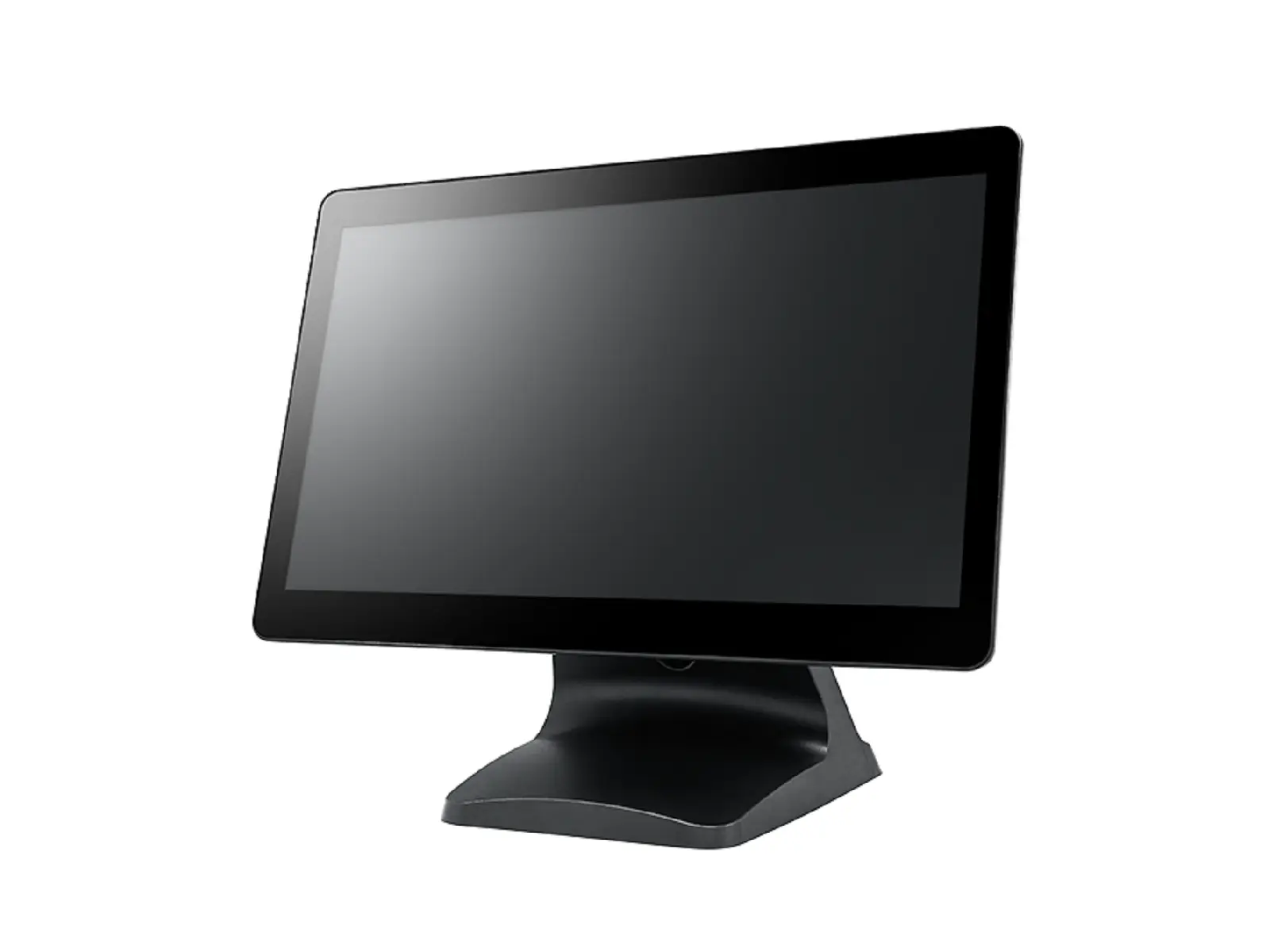

OD1216 15.6-inch Full HD Commercial Touch Monitor
A slim 15.6-inch Full HD commercial touch monitor with HDMI or USB-C Alt Mode options for POS, kiosk, retail, hospitality, and customer-facing applications.
- Display
- 15.6-inch
- Format
- 16:9
- Resolution
- 1920 × 1080
- Touch
- Optional PCAP
OD1216 at a Glance
OD1216 is a 15.6-inch Full HD commercial touch monitor for indoor POS, self-service, kiosk, and customer-facing applications. It supports HDMI or USB-C Alt Mode configurations, optional projected capacitive multi-touch, toughened glass, wide viewing angles, and VESA 75 mounting.
Product Overview
The OD1216 is a slim 15.6-inch commercial display designed for indoor POS, self-service, customer-facing, and interactive kiosk applications. Its Full HD widescreen panel provides a clear interface for ordering, checkout, product information, and customer interaction. Two interface configurations are available: HDMI with USB touch and an enhanced USB-C Alt Mode version with HDMI. Optional projected capacitive multi-touch, toughened cover glass, and VESA 75 mounting support flexible integration into desktop, wall-mounted, and embedded commercial hardware projects.
Project Support from Axisvera Tech
Axisvera Tech supports B2B customers with sourcing, configuration review, customization discussion, supplier coordination, and project execution for OD1216.
Key Features
15.6-Inch Full HD Widescreen Display
Slim 28 Mm Monitor Profile
HDMI Or USB-C Alt Mode Configuration
Optional Projected Capacitive Multi-Touch
Wide 170-Degree Viewing Angle
VESA 75 Mounting Support
Product Features

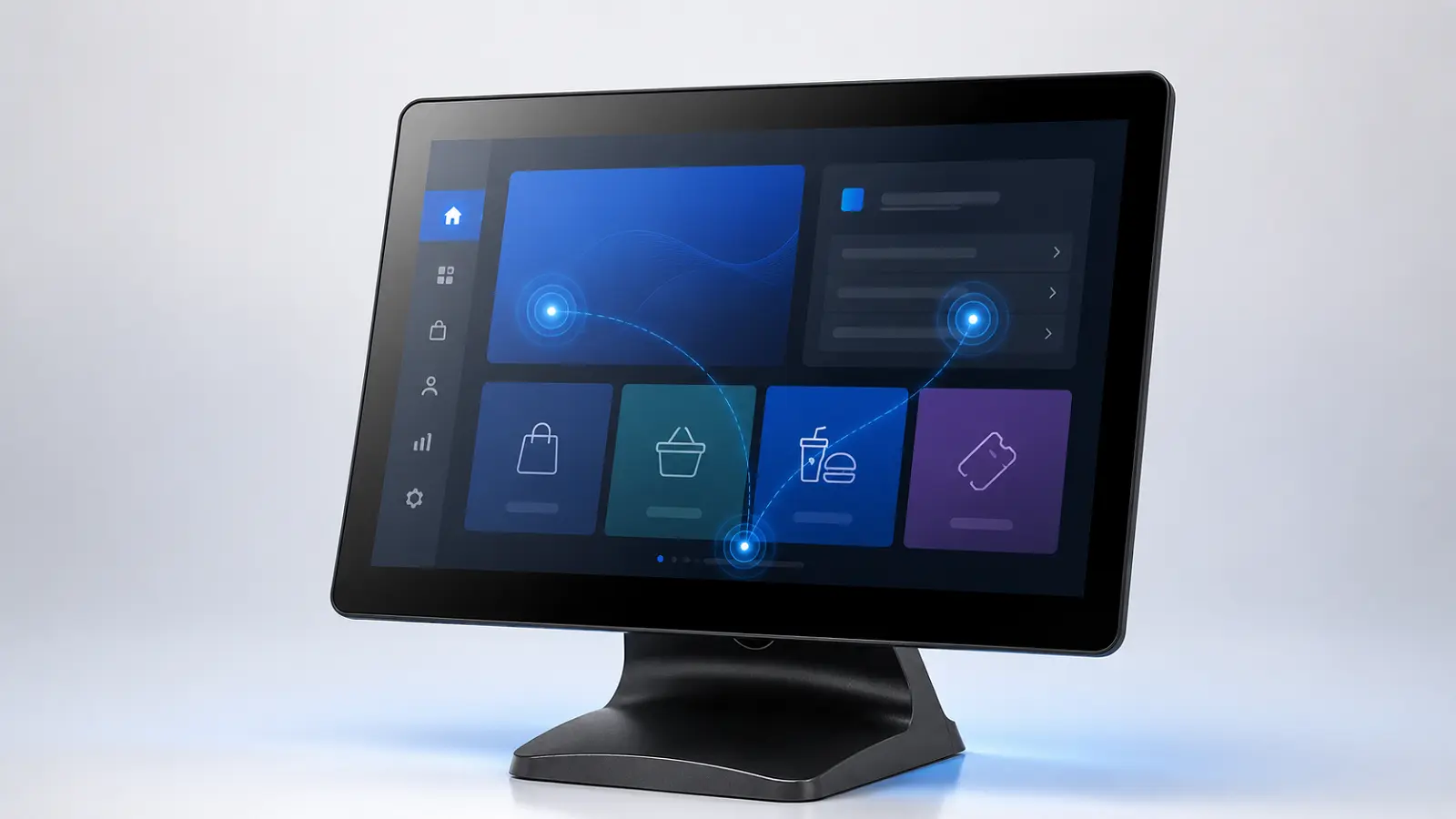

Optional True-Flat PCAP Touch
Optional projected capacitive multi-touch and toughened cover glass support intuitive customer interaction for indoor POS, kiosk, and self-service projects.
HDMI or USB-C Connectivity
Choose a conventional HDMI configuration with USB touch, or a USB-C Alt Mode version that can simplify video, touch, and power integration with compatible host systems.

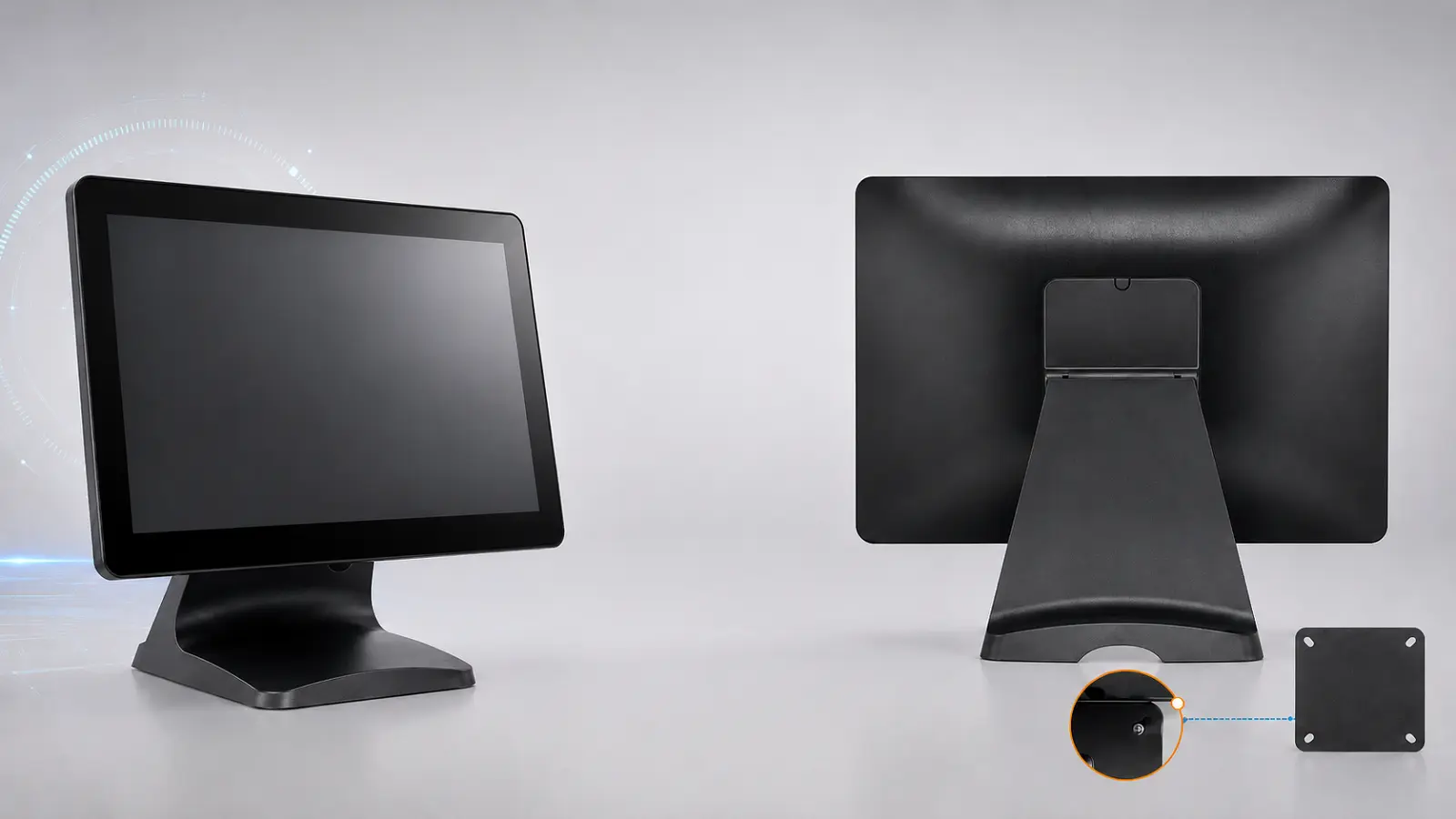

Flexible VESA Integration
Standard VESA 75 mounting supports integration with compatible third-party desktop stands, poles, arms, and enclosure structures.
Applications
Self-service ordering
POS and checkout
Customer-facing display
Interactive product information
Indoor kiosk
Commercial workstation
Specifications
Display & Touch
- Display Size
- 15.6-inch
- Aspect Ratio
- 16:9
- Resolution
- 1920 × 1080 (Full HD)
- Active Area
- 344.16 × 193.59 mm
- Panel Type
- TFT-LCD, wide viewing angle
- Backlight
- LED
- Brightness
- 280 cd/m²
- Contrast Ratio
- 800:1
- Response Time
- 30ms
- Viewing Angle
- 170° horizontal / 170° vertical
- Touch Technology
- Projected capacitive multi-touch, optional
- Input Method
- Finger
- Touch Interface
- USB
- Cover Glass
- Toughened glass
- Light Transmission
- Greater than 86%

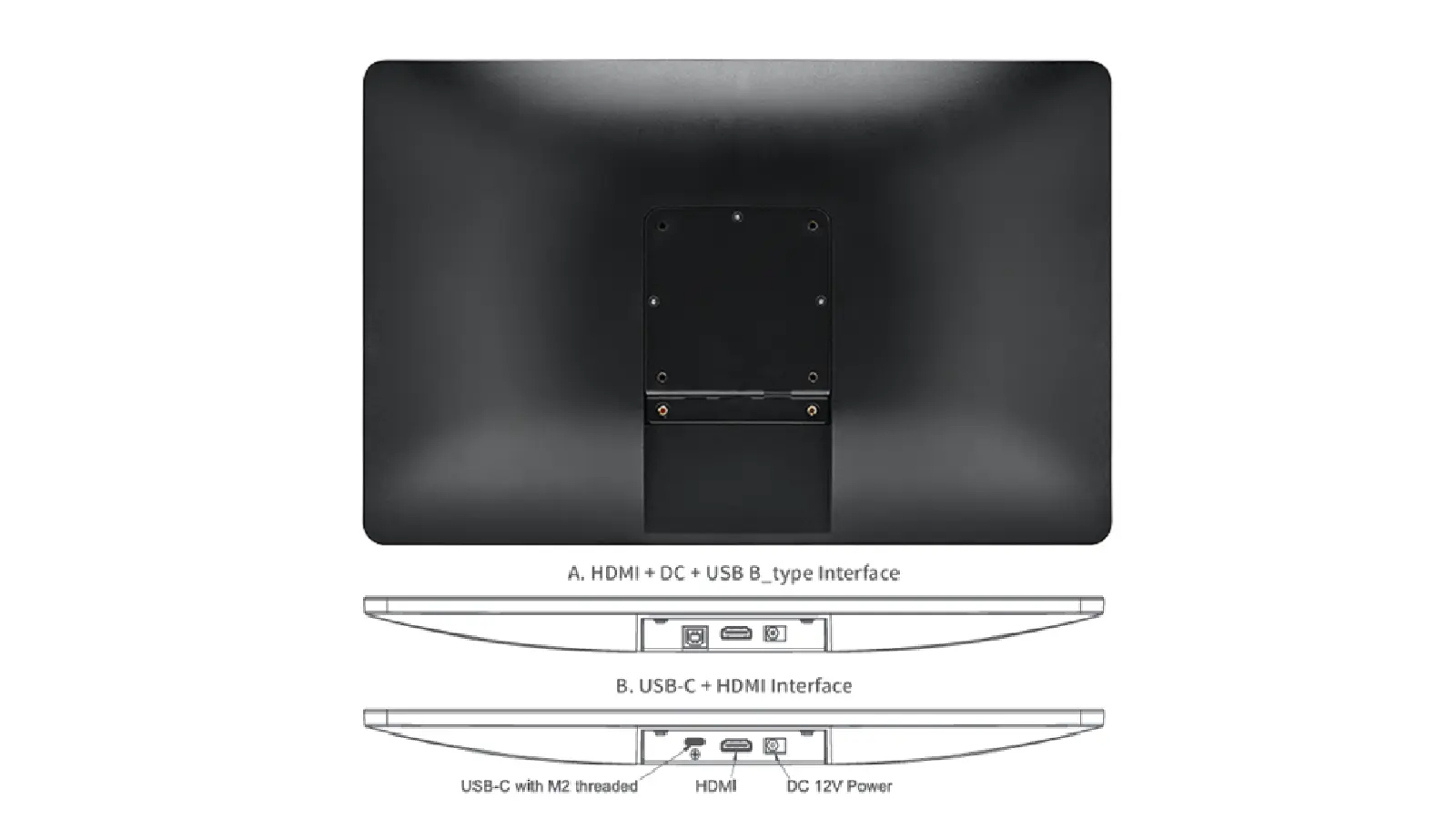

I/O
- OD1216-H
- HDMI + DC-IN + USB Type-B for touch
- OD1216-C
- USB-C with DisplayPort Alt Mode + HDMI
- OD1216-H Power Input
- DC 12V / 1.5A adapter
- OD1216-H Power Consumption
- 12V / 450mA
- OD1216-C Power Input
- USB-C power or DC 12V for HDMI operation
- OD1216-C Power Consumption
- USB-C: 7.5W; HDMI: 12V / 450mA
Mechanical
- Dimensions
- 377.9(W) × 244.3(H) × 28(D) mm (Display only)
- VESA Mount
- 75 × 75 mm
- Housing Design
- Ultra-slim true-flat design
Compliance & Security
- OD1216-H
- FCC; CE; VCCI
- OD1216-C
- FCC; CE
Environment
- Operating Temperature
- 0°C to 40°C
Available Options
Customization and configuration options available for this platform through Axisvera Tech project coordination.
Black or white housing subject to project confirmationHDMI or USB-C interface configurationOptional PCAP touchStand and mounting optionsPackaging and branding subject to MOQ and NRE
OD1216 — Frequently Asked Questions
What applications is the OD1216 designed for?
OD1216 is designed for indoor POS, self-service ordering, customer-facing interaction, product information, kiosk, and commercial workstation applications.
Does the OD1216 support touch operation?
Yes. Projected capacitive multi-touch with toughened cover glass is available as an option. Confirm the required touch configuration when requesting a quotation.
What interface options are available?
OD1216-H provides HDMI video, USB-B touch, and DC power. OD1216-C adds USB-C Alt Mode together with HDMI. Final compatibility depends on the selected configuration and host device.
Can USB-C carry video, touch, and power through one cable?
The USB-C configuration supports DisplayPort Alt Mode and may support video, touch, and power through a compatible host connection. Host USB-C capabilities and available power output must be verified before deployment.
Can the monitor be VESA mounted?
Yes. The monitor supports a 75 × 75 mm VESA mounting pattern for compatible stands, brackets, and embedded installations.
Can Axisvera provide customized branding or packaging?
Branding, housing color, packaging, cables, stands, and other project-specific options may be evaluated subject to supplier feasibility, MOQ, NRE, certification, and production requirements.
Planning a POS, Kiosk, or Commercial Display Project?
Share your application, required interface, touch configuration, mounting needs, expected quantity, and project schedule with Axisvera Tech.
