True-Flat 4:3 POS Display
The 15-inch true-flat 4:3 display provides a familiar, space-efficient workspace for restaurant order entry, cashier checkout, and POS software designed for traditional square-format screens.
OD1215

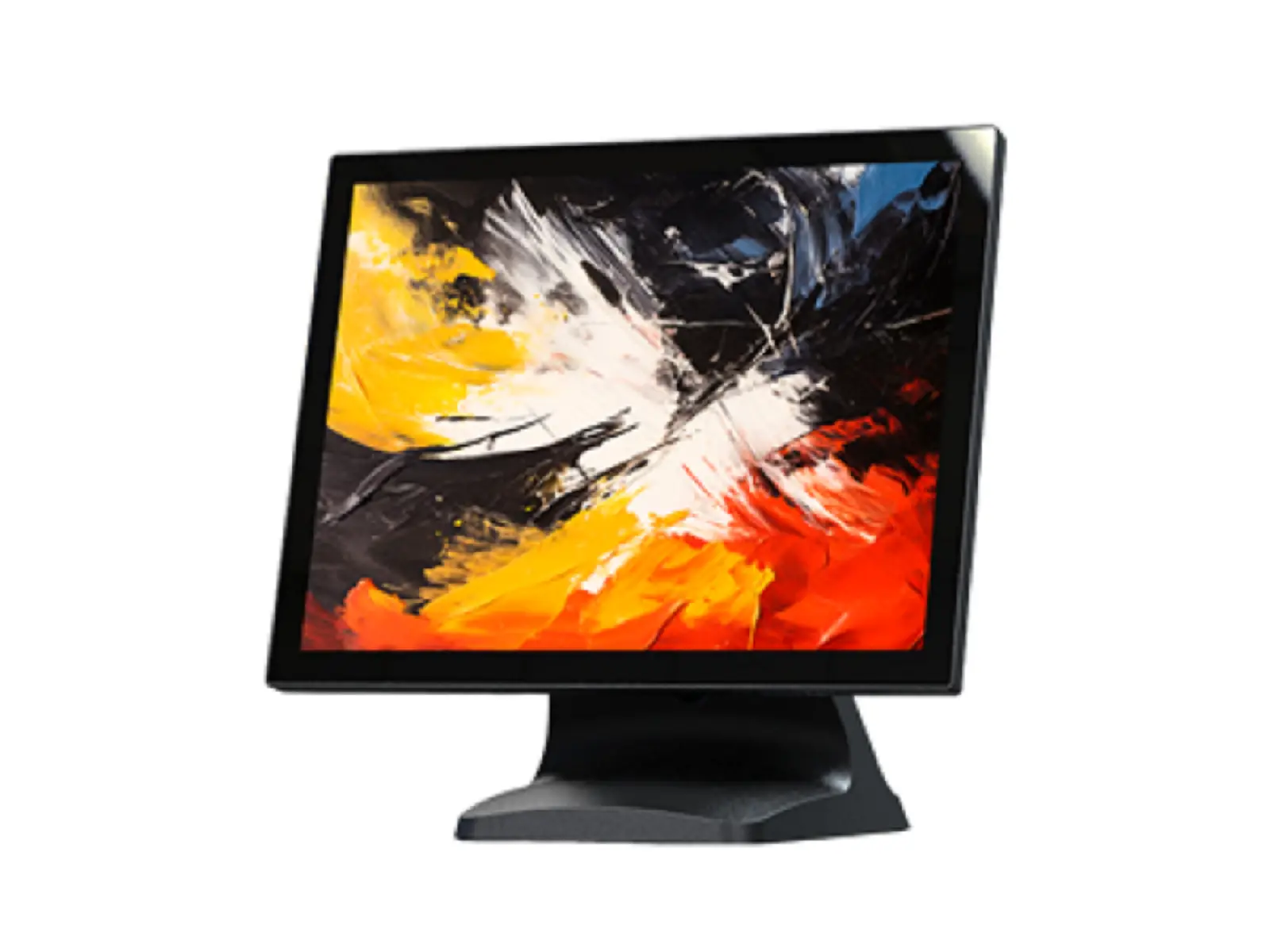

OD1215 15-inch 4:3 Restaurant POS Touch Monitor
A true-flat 15-inch 4:3 touch monitor designed for restaurant POS, retail checkout, cashier stations, and traditional square-format software, with HDMI or USB-C Alt Mode configurations.
- Display
- 15-inch
- Format
- 4:3
- Resolution
- 1024 × 768
- Touch
- Optional PCAP
OD1215 at a Glance
OD1215 is a true-flat 15-inch 4:3 restaurant POS touch monitor for order entry, cashier checkout, retail transactions, and legacy square-format POS software. It offers 1024 × 768 resolution, 350 cd/m² brightness, wide viewing angles, HDMI or USB-C Alt Mode configurations, optional PCAP multi-touch, and VESA 75 mounting.
Product Overview
The OD1215 is a true-flat 15-inch 4:3 commercial touch monitor designed for restaurant POS order entry, cashier checkout, retail transactions, and software interfaces developed for traditional square-format displays. Its 1024 × 768 TFT-LCD panel delivers 350 cd/m² brightness and wide 178-degree viewing angles for clear indoor operation. OD1215-H provides HDMI video, USB touch, and DC power, while OD1215-C supports USB-C DisplayPort Alt Mode for compatible host systems together with DC input. Optional projected capacitive multi-touch, toughened cover glass, a solid desktop stand, and VESA 75 mounting support flexible commercial installation.
Project Support from Axisvera Tech
Axisvera Tech supports B2B customers with sourcing, configuration review, customization discussion, supplier coordination, and project execution for OD1215.
Key Features

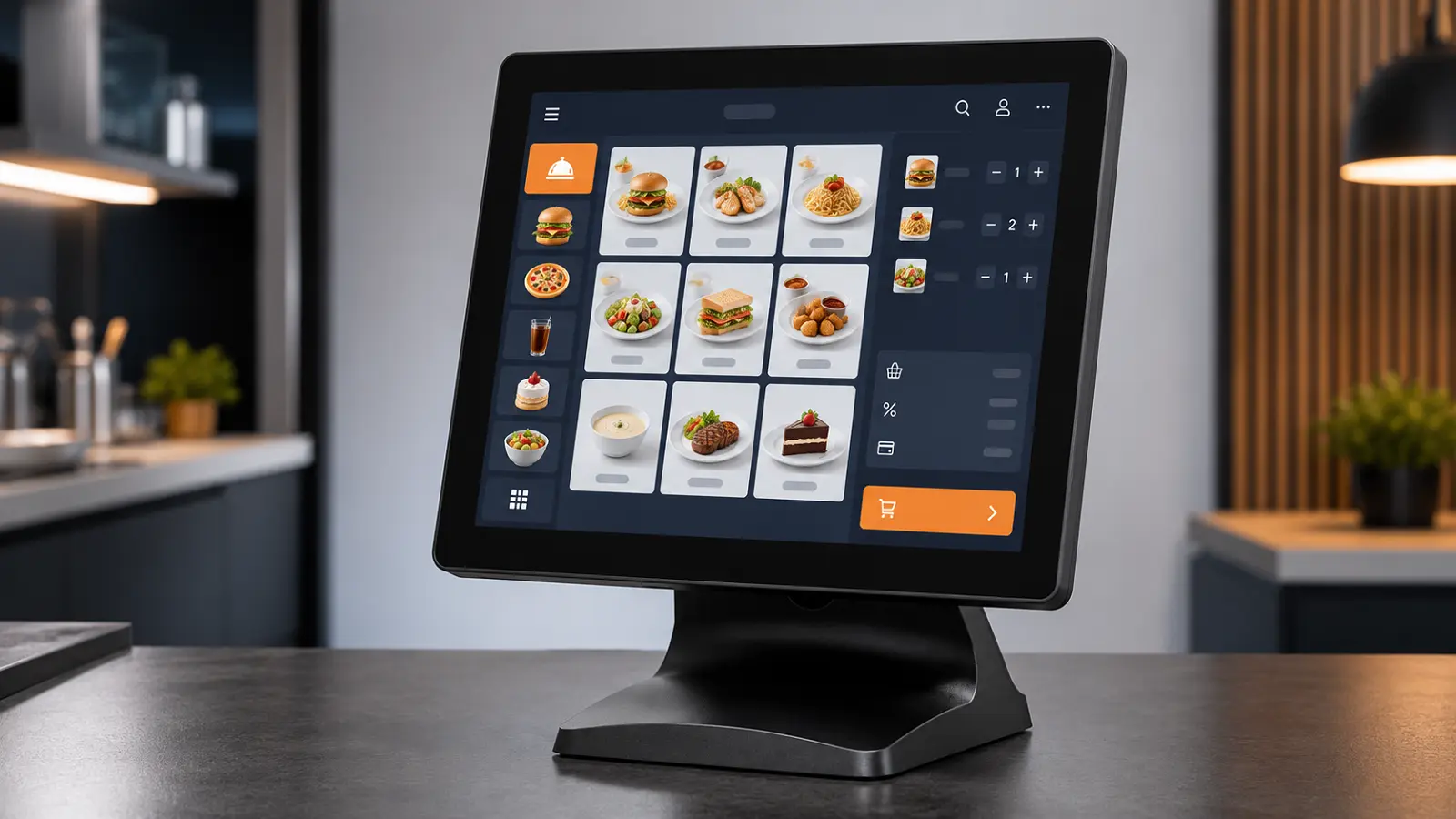

15-Inch True-Flat 4:3 Display
1024 × 768 Resolution
350 Cd/M² Brightness
178-Degree Wide Viewing Angles
HDMI Or USB-C Alt Mode Configuration
Optional PCAP Multi-Touch
Product Features
Clear 350-Nit Wide-View Panel
A 350 cd/m² TFT-LCD panel with 178-degree horizontal and vertical viewing angles supports clear indoor visibility for restaurant and retail operators.

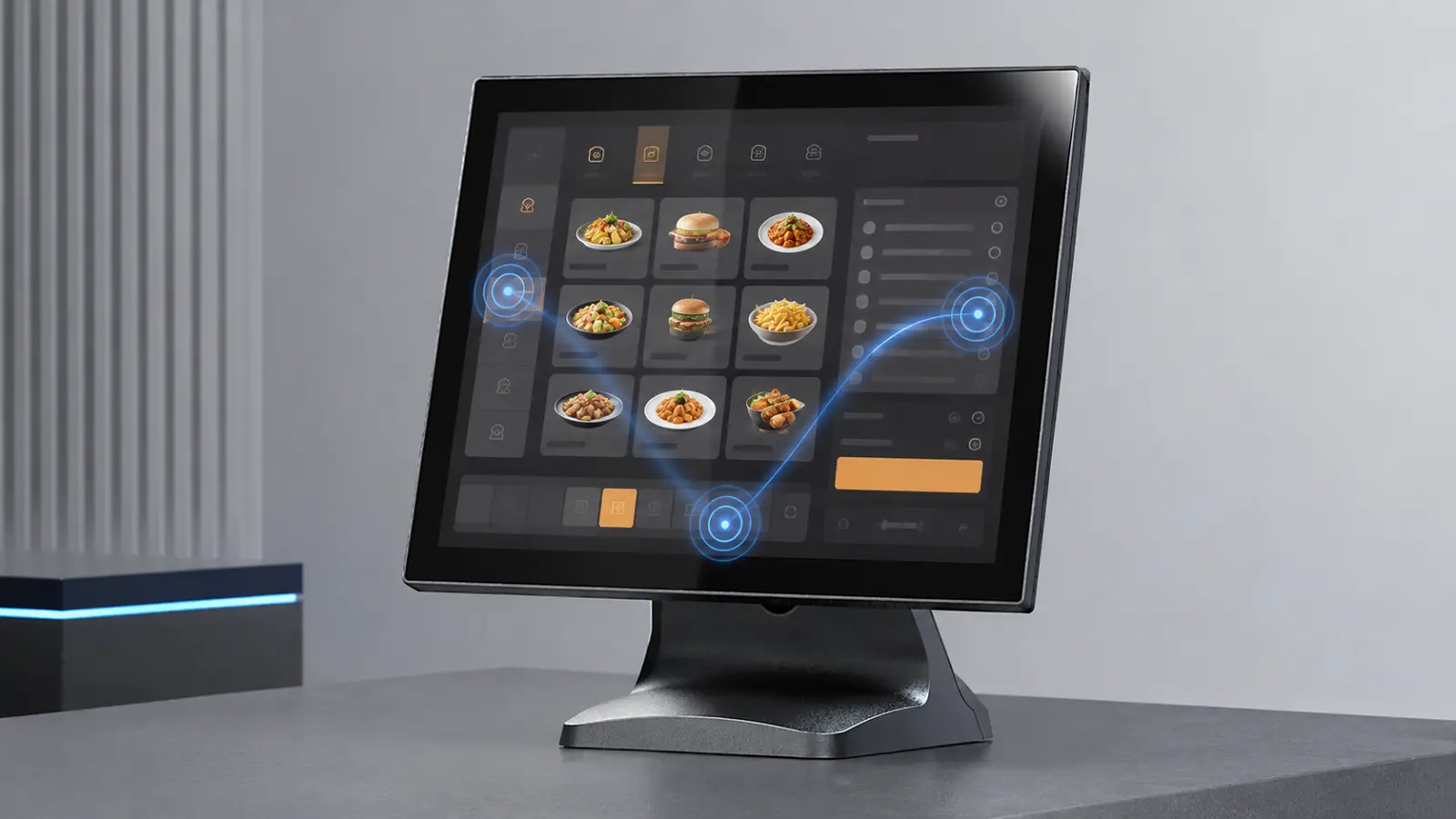

Optional PCAP Multi-Touch
Optional projected capacitive multi-touch with toughened cover glass supports intuitive order entry, checkout, and customer-service workflows.

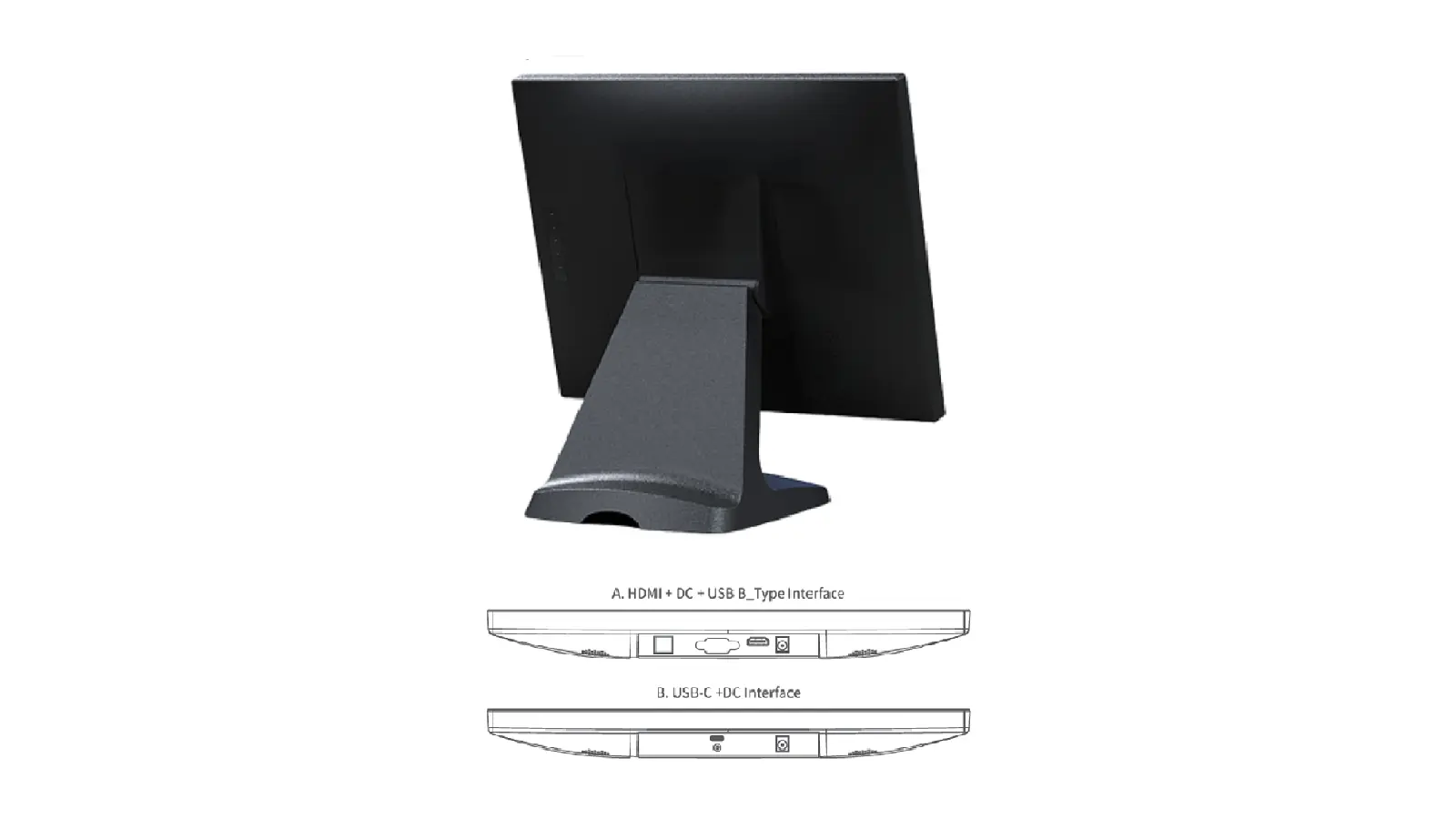

HDMI or USB-C Alt Mode
Select OD1215-H with HDMI and USB touch, or OD1215-C with USB-C DisplayPort Alt Mode for compatible host systems. Host video, data, and power capabilities should be verified before deployment.
Applications
Restaurant POS order entry
Cashier checkout
Retail transaction terminal
Legacy 4:3 POS software
Customer service counter
Commercial operator display
Specifications
Display & Touch
- Display Size
- 15-inch
- Aspect Ratio
- 4:3
- Resolution
- 1024 × 768
- Active Area
- 304 × 228 mm
- Panel Type
- TFT-LCD, wide viewing angle
- Backlight
- LED
- Brightness
- 350 cd/m²
- Contrast Ratio
- 600:1
- Response Time
- 20ms
- Viewing Angle
- 178° horizontal / 178° vertical
- Touch Technology
- Projected capacitive multi-touch, optional
- Input Method
- Finger
- Touch Interface
- USB
- Cover Glass
- Toughened glass
- Light Transmission
- Greater than 86%
I/O
- OD1215-H
- HDMI; USB Type-B touch; DC input
- OD1215-C
- USB-C with DisplayPort Alt Mode; DC input
- OD1215-H Power Input
- DC 12V / 1.5A adapter
- OD1215-H Power Consumption
- 12V / 1.2A
- OD1215-C Power Input
- USB-C power input or DC 12V adapter
- OD1215-C Power Consumption
- DC 12V / 1.2A or USB-C 5V / 2.7A
Mechanical
- Dimensions
- 341(W) × 269(H) × 34(D) mm (Display only)
- VESA Mount
- 75 × 75 mm
- Desktop Stand
- Solid stand
Compliance & Security
- OD1215-H
- FCC; CE
- OD1215-C
- FCC; CE
Environment
- Operating Temperature
- 0°C to 40°C
Available Options
Customization and configuration options available for this platform through Axisvera Tech project coordination.
Black or white housing subject to availabilityOD1215-H or OD1215-C interface configurationOptional PCAP multi-touchDesktop stand or VESA mountingCable configurationBranding and packaging subject to MOQ, NRE, and certification requirements
OD1215 — Frequently Asked Questions
What applications is the OD1215 designed for?
OD1215 is designed for restaurant POS order entry, cashier checkout, retail transactions, customer-service counters, and software interfaces optimized for 4:3 displays.
Why choose a 4:3 POS monitor instead of a widescreen display?
A 4:3 display provides a balanced vertical workspace and can match restaurant and retail POS applications originally designed for traditional square-format screens.
Does the OD1215 support touch operation?
Yes. Projected capacitive multi-touch with toughened cover glass is available as an option. Confirm the required touch configuration when requesting a quotation.
What is the difference between OD1215-H and OD1215-C?
OD1215-H provides HDMI video, USB-B touch, and DC power. OD1215-C supports USB-C DisplayPort Alt Mode together with DC input for compatible host systems.
Can USB-C carry video, touch, audio, and power through one cable?
The USB-C configuration may support video, touch data, audio, and power through a compatible USB-C host connection. The host must support DisplayPort Alt Mode and provide the required data and power capabilities, so compatibility must be verified before deployment.
Can the OD1215 replace an existing 15-inch POS monitor?
It may be suitable as a replacement for an existing 15-inch 4:3 POS monitor. Resolution, video interface, touch connection, dimensions, VESA pattern, stand, and software compatibility should be confirmed first.
What mounting options are available?
OD1215 can be supplied with the solid desktop stand shown in the datasheet and also supports a 75 × 75 mm VESA mounting pattern for compatible brackets.
Is the OD1215 available in black or white?
The product can be evaluated in black or white housing, subject to configuration, availability, MOQ, and project confirmation.
Planning a Restaurant POS or Retail Checkout Project?
Share your POS software environment, required interface, touch configuration, mounting needs, expected quantity, and project schedule with Axisvera Tech.
